XY Scope

XY Scope is a specialization of the Perun Scope component custom-made for displaying and visualization of pairs of live signals, where values of the one signals are shown as functions of values of the other.

_images/scope_xy.png

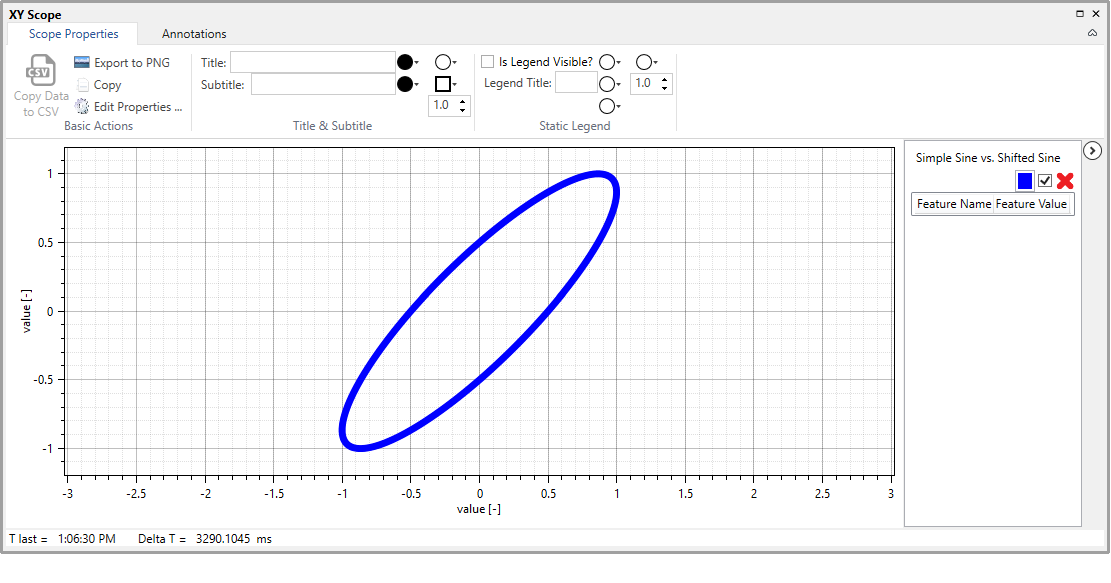

XY Scope showing a pair of simple harmonic signals, where one is shifted with respect to the other by \(\pi/6\).

The following functionality is specific for XY Scope component:

  • The axes are always of the same aspect ratio! Lengths of horizontal and vertical units are always the same.
